Automatic 2 piece aluminum container making production line

  • Automatic 2 piece aluminum container making production line
  • Automatic 2 piece aluminum container making production line
  • Automatic 2 piece aluminum container making production line
  • Automatic 2 piece aluminum container making production line

Automatic 2 piece aluminum container making production line

Product Description

Product Description
Product Description

Product Application

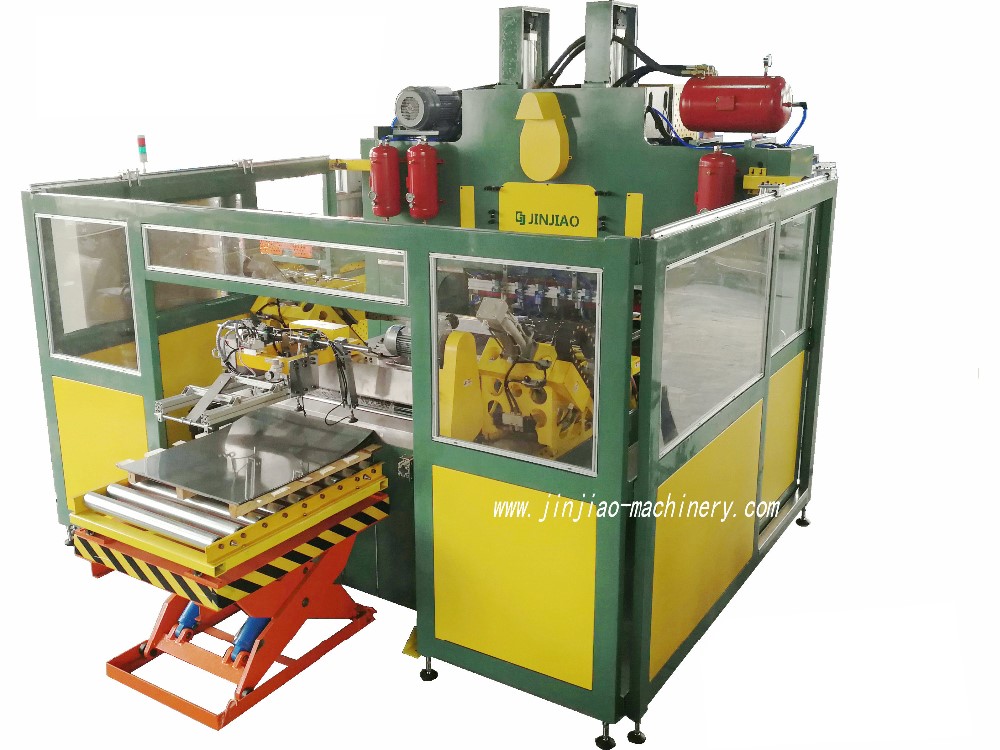

This machine is a high speed and high precision automatic two-piece can production equipment. It is suitable for all kinds of 2-piece can made by the tinplate (aluminum). The whole sheet (aluminum) from the cylinder feedstock, automatic position pushing, servo feeding, mechanical hand stuffing , servo feeding, can stamping, second stretching and forming,then trimming, automatic out of the cans to palletizer with fully automatic operation, no manual operation. The whole line equip with three CNC high precision press, which is first stamping, second stretching and forming, the last trimming.

SPECIFICATIONS FOR 2-PIECE CAN MAKING PRODUCTION LINE
Parameters
Mode
GT2A4-120-T
GT2A4-100
GT2A4-60-T
(First feeding and stamping)
(Second stretching and forming)
(Trimming)
Normal Pressure
120T
100T
60T
Max stroke times
120
110
120
Max die installed
3
3
3
Max sheet size
1100*1100
1100*1100
1100*1100
Max sheet thickness
0.4mm
0.4mm
0.4mm
Total Power
25kw
35kw
13kw
Installation size
14000*1500*2800
Total weight
14.5T
16T
8.5T

Main Features

1. Man-machine interface and simple operation.
2. Using the mechanical arm servo feeding, the automation degree is high.
3. Equipped with various alarm protection, safe and convenient to maintain.
4. Adopt the gantry bed, no gap guide running, when with high speed operation it has good stability and high precision.
5. Use the whole sheet blanking to improve efficiency and reduce the loss of raw materials.

Certifications
Certifications
Detailed Images
Detailed Images

Machine Parts

Name: Balance Cylinder

Brand: FESTO

Original: Germany

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Main Features

Name: Pneumatic Components
Brand: CKD
Original: Japan

Energy saving, no pollution, high efficiency, low cost, safe and reliable, simple structure.

Machine Parts

Name: Magnetic Valve
Brand: MAC
Original: America
Ideal for applications where high flow and repeatability in a small package size are crucial. Simple cartridge design for easy adaptability.

Packing & Delivery
Packing & Delivery
Packaging
Size
14000 (L) * 1500 (W) * 2800 (D)
Weight
38.5 T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products
Related Products

2-piece tin can making machine

91.8% Response Rate

Online Inspecting Machine

91.8% Response Rate

Automatic Palletizer

91.8% Response Rate

Zhoushan Jiaolong Import And Export Co., Ltd.

 Zhoushan JiaoLong Machinery is located in the beautiful island city - Zhoushan islands.The company was founded in 2006, is a professional manufacturer of tin cans making machinery, lid machinery and all kinds of mold.Company recruit more capable talents and appreciate research and development, through the absorption, the recommend and digestion advanced technology and design concept overseas and domestic, in conformity with the guiding principle of "dare innovation, keep improving", make the products constantly updated and the quality improved based on market demand,has won worldwide customers consistent recognition and praise. Our company has become a bright jewel in the packaging industry of tinplate, through our dedication with "Decade of grinding sword" and professional ethics.
Our company provides the following series of products:lids production line (EOE and basic shell),aerosol cone and dome production line,two-piece can making machine and screw-cap production line.Including: high precision CNC press, high speed lining machine, testing machine on line, electromagnetism oven, conversion press for producing aerosol cone etc. We can also offer trimming die,shear die, cutter, mold core , seaming roller chuck and related accessories and mold.
Now our machines have been exported to Russia, Ukraine, Turkey, Bulgaria, Poland, Australia, Singapore, Thailand, the Philippines, India, the united Arab emirates, Iran, Egypt, Nigeria and other countries ,it is always ready to develop long and good relationship with overseas companies.
